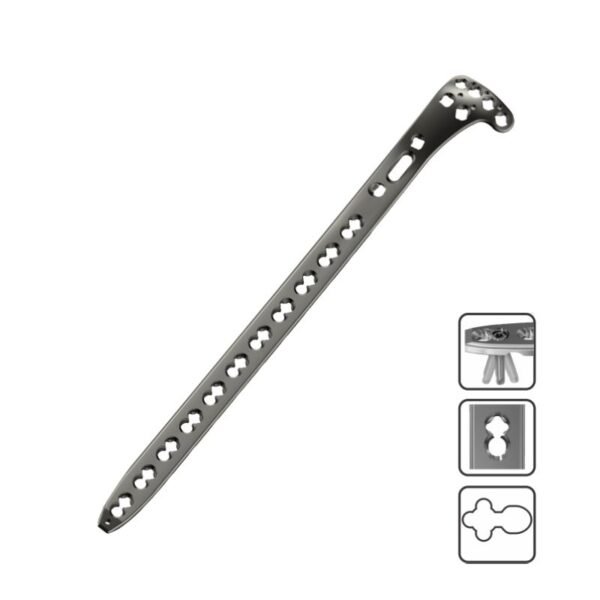

Locking Variable Angle Proximal Lateral Tibia Plate 3.5/4.0mm

Indications:

Fractures of the Proximal Tibia, Including Simple, Comminuted, Lateral – Wedge, medial Wedge, Depression, Bicondylar Fractures and Fractures with Associated Shaft Fractures.
Treatment of Nonunion, Malunions & Osteotomies of Proximal Tibia.

Description

Following Screws are to be use with above Plates:

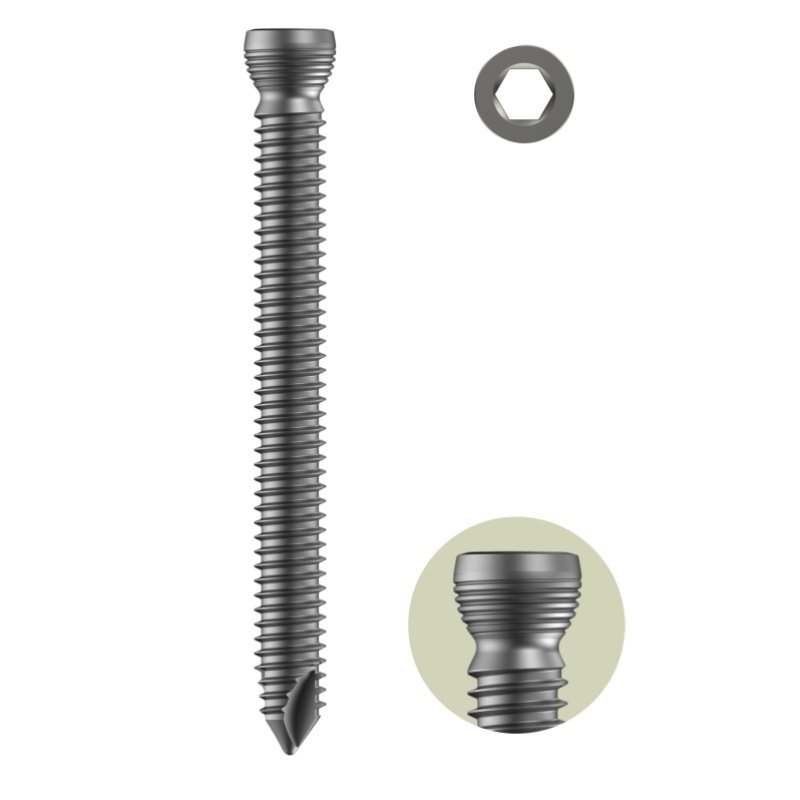

A) Variolock 3.5mm Locking Head Screw – Self Tapping

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
102.910 To 102.980	10mm To 80mm	Ti.102.910 To Ti.102.980

Stainless Steel	Star Drive	Titanium
Cat No.	Size	Cat No.
–	10mm To 80mm	Ti.102.510 To Ti.102.580

B) 3.5mm Locking Head Screw – Self Tapping

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
102.310 To 102.380	10mm To 80mm	Ti.102.310 To Ti.102.380

Stainless Steel	Star Drive	Titanium
Cat No.	Size	Cat No.
102.410 To 102.480	10mm To 80mm	Ti.102.410 To Ti.102.480

C) Variolock 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
105.912 To 105.980	12mm To 80mm	Ti.105.912 To Ti.105.980

Stainless Steel	Star Drive	Titanium
Cat No.	Size	Cat No.
–	12mm To 80mm	Ti.105.412 To Ti.105.480

D) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
105.512 To 105.580	12mm To 80mm	Ti.105.512 To Ti.105.580

Stainless Steel	Star Drive	Titanium
Cat No.	Size	Cat No.
105.612 To 105.680	12mm To 80mm	Ti.105.612 To Ti.105.680

E) Cortical Screw 3.5mm Dia. – Self Tapping

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
102.210 To 102.260	10mm To 60mm	Ti.102.210 To Ti.102.260

Stainless Steel	Star Drive	Titanium
Cat No.	Size	Cat No.
102.710 To 102.760	10mm To 60mm	Ti.102.710 To Ti.102.760

Following Instruments to be use with above Plate:

Cat No.	Description
260.281	Drill Bit – S.S. Quick Coupling End Dia. 2.8mm x 180mm Long – Calibrated
804.110	LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm
804.121	Tap for 3.5mm Locking Head Screws
804.163	Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.168	Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip(For Torque Handle 1.5N.M)
260.250	Drill Bit – S.S. – Quick Coupling End Dia. 2.5mm X 115mm Long
263.025	Bone Tap with T – Handle Dia. 3.5mm Thread Length 50mm, Total Length 125mm
260.270	Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long
263.037	Bone Tap with T – Handle Dia. 4.0mm – Cancellous, Thread Length 50mm, Total Length 125mm
301.110	Small Hexagonal Screw Driver 2.5mm Tip – Sillicon Handle
301.125	Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical, & 4.0mm Cancellous Screws) – Silicon Handle
301.126	Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head Screw) – Silicon Handle
303.010	Small Depth Gauge
XP.301.081	Star Drive Screw Driver – 2.5mm Tip/T-15
804.114	Variable Angle Drill Guide For 3.5/4.0MM Variable Angle – LCP Plate
804.128	Conical Type Variable Angle Drill Sleeve 3.5/4.0mm

Following Size of Locking Variable Angle Proximal Lateral Tibia Plate 3.5/4.0mm are available in Stainless Steel & Titanium Material:
