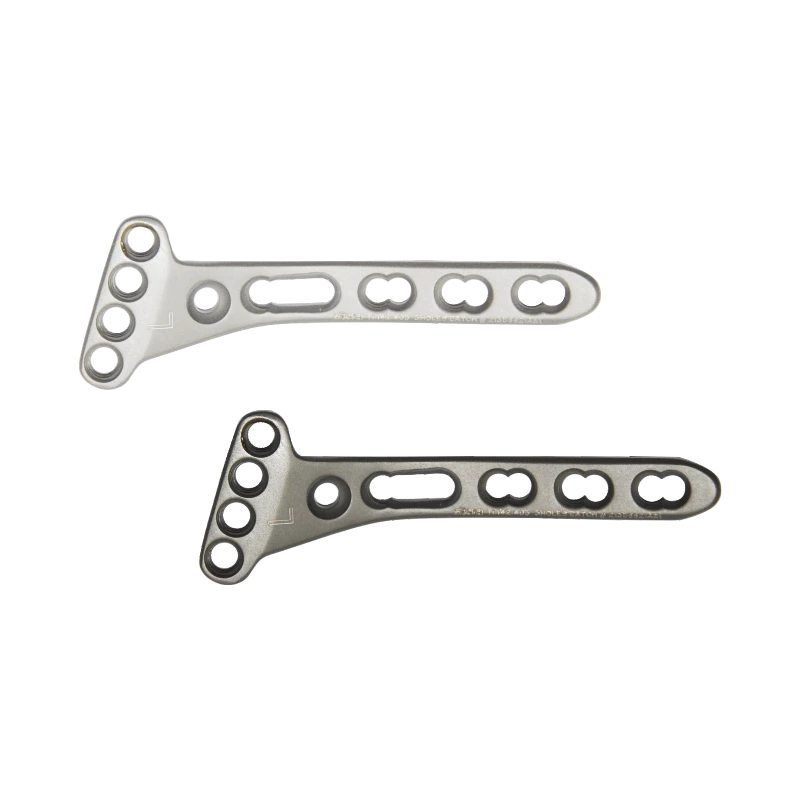

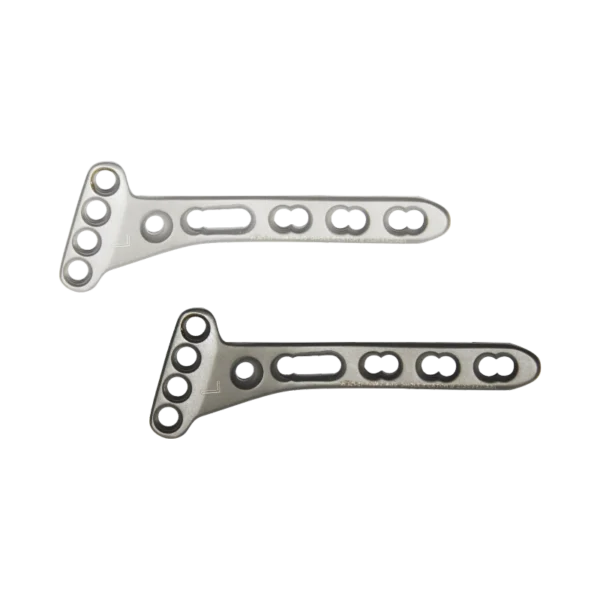

Locking Extra Articular Small T – Plate Oblique Angled-2.7mm (Head 4 Holes)

Indications:

  • Intra – Articular or Extra Articular Fractures of Distal Radius.

  • Osteotomies of Distal Radius.

Description

Following Screws are to be use with Above Plates:

A) 2.7 mm Locking Head Screw – Self Tapping

Stainless Steel Hex Drive Titanium
Cat No. Size Cat No.
101.310 to 101.350 10mm to 50mm Ti.101.310 to Ti.101.350
Stainless Steel Star Drive Titanium
Cat No. Size Cat No.
101.410 to 101.450 10mm to 50mm Ti.101.410 to Ti.101.450

B) Cortical Screw 2.7mm Dia. – Self Tapping

Stainless Steel Hex Drive Titanium
Cat No. Size Cat No.
101.106 to 101.140 6mm to 40mm Ti.101.106 to Ti.101.140
Stainless Steel Star Drive Titanium
Cat No. Size Cat No.
101.710 to 101.740 10mm to 40mm Ti.101.710 to Ti.101.740

Following Instruments to be use with above Plate:

Cat No. Description
260.210 Drill Bit – S.S. Quick Coupling End Dia. 2.0mm X 140mm Long
264.020 Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm
301.024 Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking Head screws)
301.031 Hexagonal Screw Driver 2.0mm Tip – Silicon Handle
301.040 Small Hexagonal Screw Driver 2.0mm Tip – Silicon Handle
311.004 Mini Depth Gauge (Measuring Length 40mm)
804.120 LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit
804.122 Tap for 2.7mm Locking Head Screws
804.162 Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm)
804.166 Hexagonal Screw Driver Q.C.End Shaft – 2.0mm Tip (for Torque Handle 0.8Nm)
XP.301.080 Star Drive Screw Driver 2mm Tip/T-8

Following Size of Locking Extra Articular Small T – Plate (Head 4 Holes) are available in Stainless Steel & Titanium Material.

Cat No. (Stainless Steel) Holes (Left) Cat No. (Titanium)
142.403 3 Holes Ti.142.403
142.404 4 Holes Ti.142.404
142.405 5 Holes Ti.142.405
Cat No. (Stainless Steel) Holes (Right) Cat No. (Titanium)
142.413 3 Holes Ti.142.413
142.414 4 Holes Ti.142.414
142.415 5 Holes Ti.142.415
